Thread: None laser related - Transistor help

  1. #1

    Default None laser related - Transistor help

    all the blowers/fans have died in my car ive traced it back to the resistor pack.

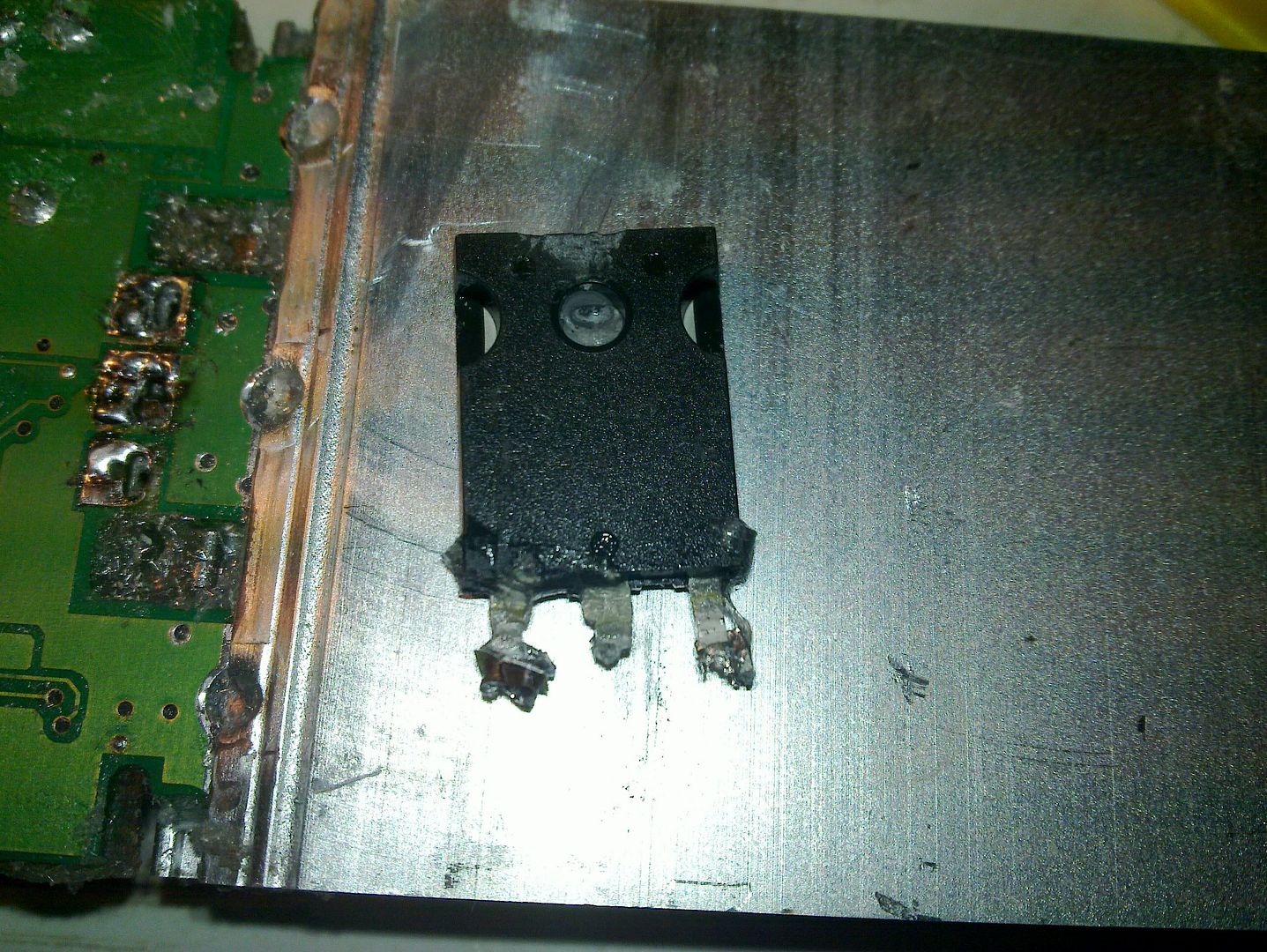

    did a google search but nothing, number on this transistor reads

    F n506ab
    75344g

    anyone know where i can get one?

    http://i187.photobucket.com/albums/x...100625_005.jpg
    Eat Sleep Lase Repeat


    Aluminium Optic Mounts

    http://www.laser-man.co.uk/opticmounts/

  2. #2
    Join Date
    Dec 2009
    Location
    Laurel, MD
    Posts
    297

  3. #3

    Default

    Eat Sleep Lase Repeat


    Aluminium Optic Mounts

    http://www.laser-man.co.uk/opticmounts/

  4. #4
    Join Date
    Nov 2007
    Location
    Cairns, Australia
    Posts
    1,896

    Default

    Should do, just make sure you check the pinouts

  5. #5
    Join Date
    Dec 2008
    Location
    Southport, UK
    Posts
    2,746

    Default

    I would check the blower motor too, the transistor pack generally fails due to tight bearings in the blower motor.

    The pack might also be protected by a thermal fuse.
    http://img62.imageshack.us/img62/3985/laser.gif

    Doc's website

    The Health and Safety Act 1971

    Recklessly interfering with Darwinís natural selection process, thereby extending the life cycle of dim-witted ignorami; thus perpetuating and magnifying the danger to us all, by enabling them to breed and walk amongst us, our children and loved ones.





  6. #6

    Default

    Quote Originally Posted by Doc View Post
    I would check the blower motor too, the transistor pack generally fails due to tight bearings in the blower motor.

    The pack might also be protected by a thermal fuse.
    once i get the resistor pack working i will be checking the blower motor.

    what would a thermal fuse look like?

    Click image for larger version.

Name:	20100624_009.jpg
Views:	13
Size:	540.3 KB
ID:	18008
    Eat Sleep Lase Repeat


    Aluminium Optic Mounts

    http://www.laser-man.co.uk/opticmounts/

  7. #7
    Join Date
    Dec 2008
    Location
    Southport, UK
    Posts
    2,746

    Default

    Generally a thermal fuse looks like a metal canned resistor or a very slim plain ally axial capacitor, usually with a silicone compound around one lead of the component where the lead enters the can.

    If it has one I would expect it to be adjacent to the heatsink.
    http://img62.imageshack.us/img62/3985/laser.gif

    Doc's website

    The Health and Safety Act 1971

    Recklessly interfering with Darwinís natural selection process, thereby extending the life cycle of dim-witted ignorami; thus perpetuating and magnifying the danger to us all, by enabling them to breed and walk amongst us, our children and loved ones.





  8. #8

    Default

    ok cheers

    so how do i check that the transistor i got from maplin has the same pin out as the original one when i dont have a data sheet for the original?
