A 1.2W 638nm Module ive been working on

**andy_con** · 10-21-2012, 11:57

very pleased with the results.

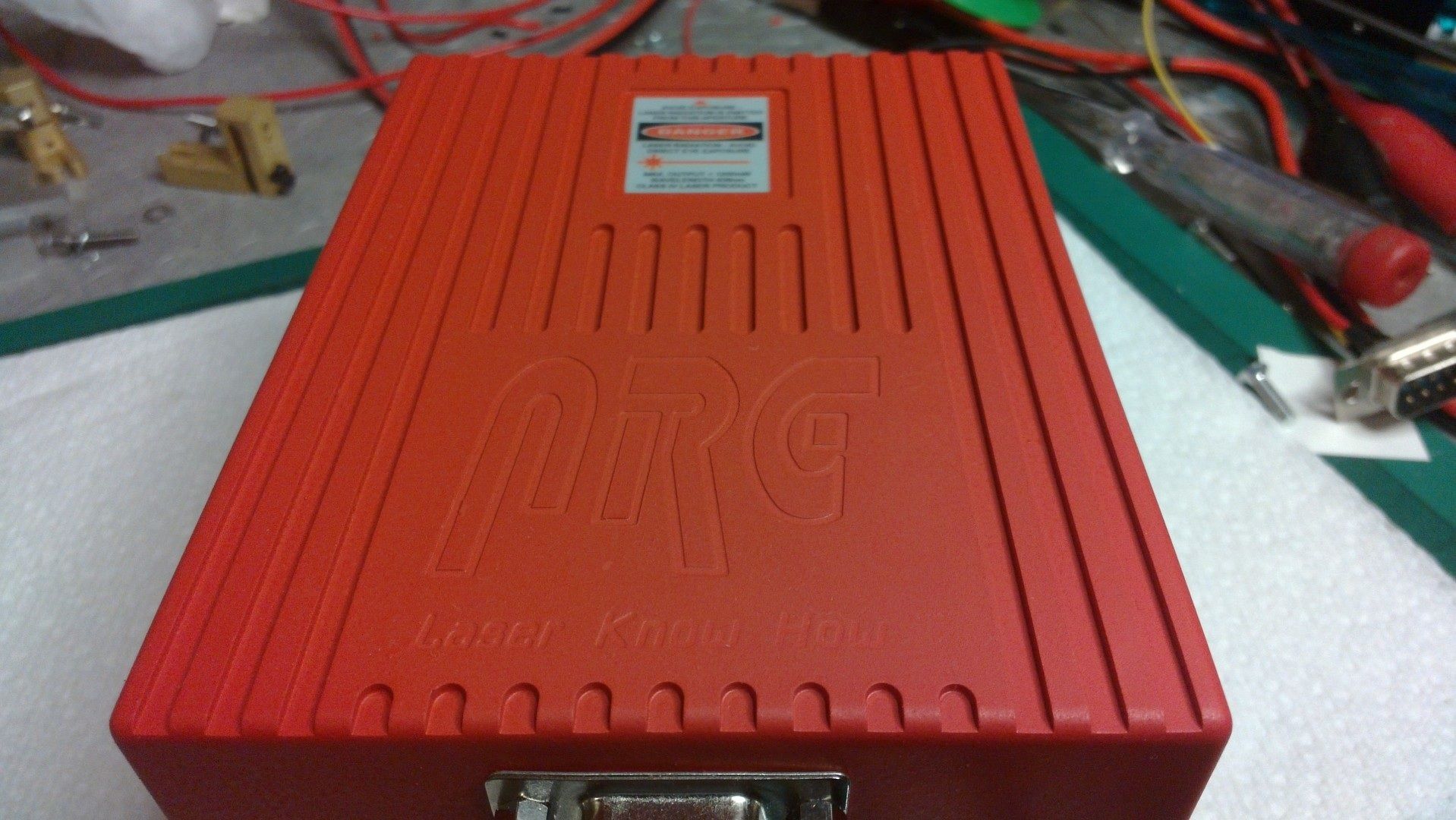

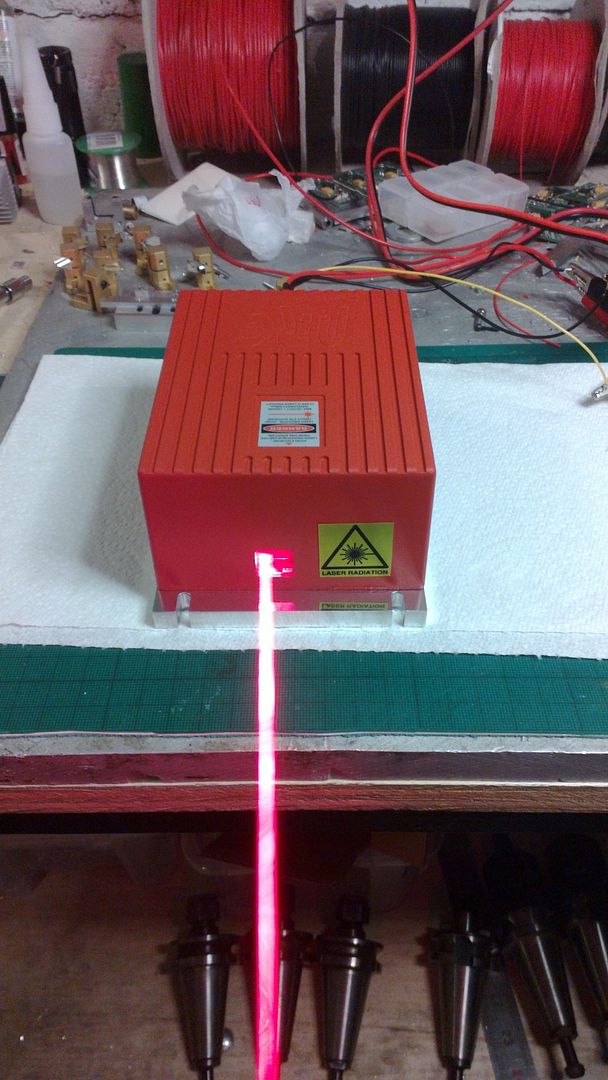

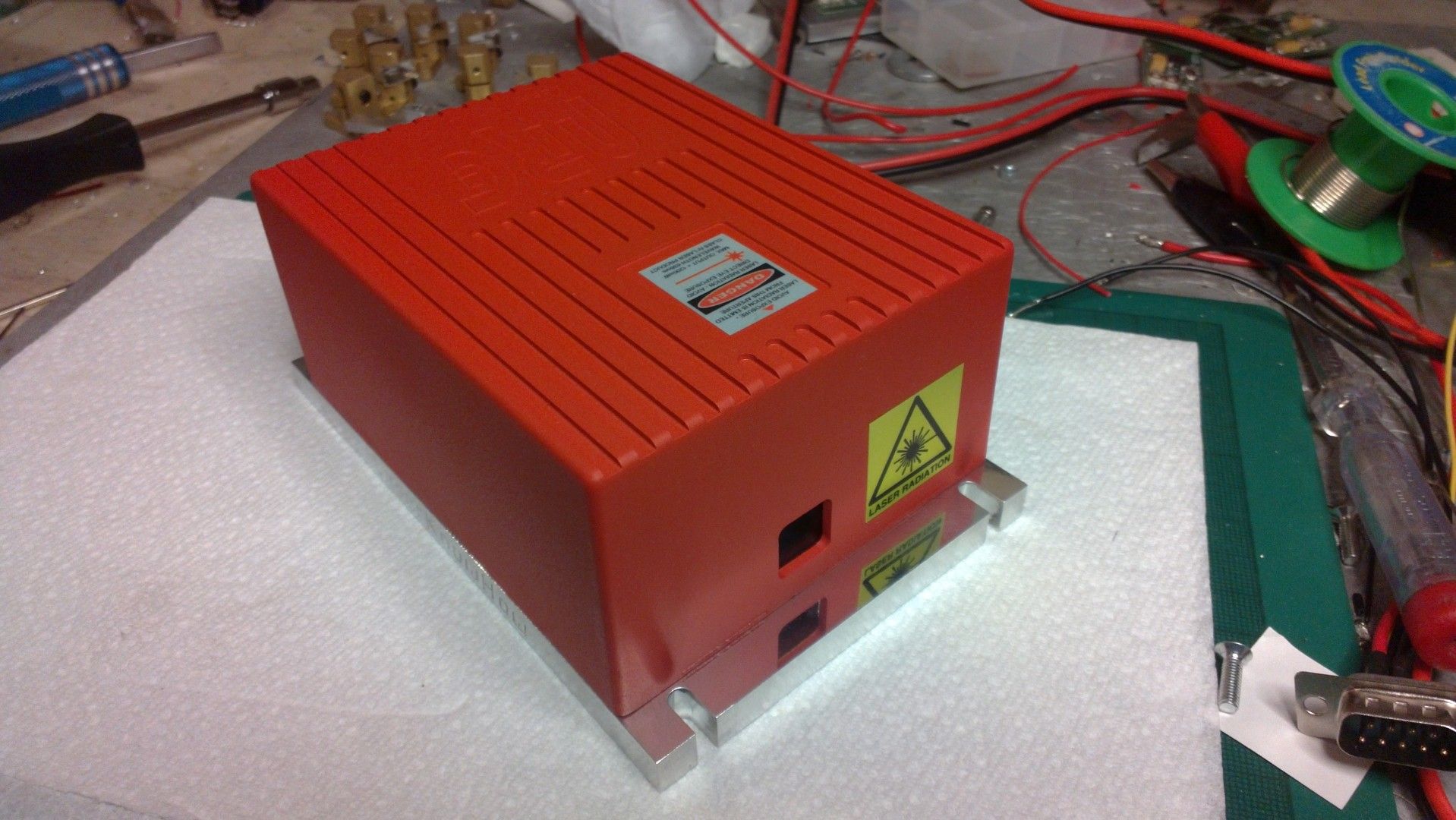

its a 1.2watt 638nm module, it uses 4x 300mw 638 diodes.

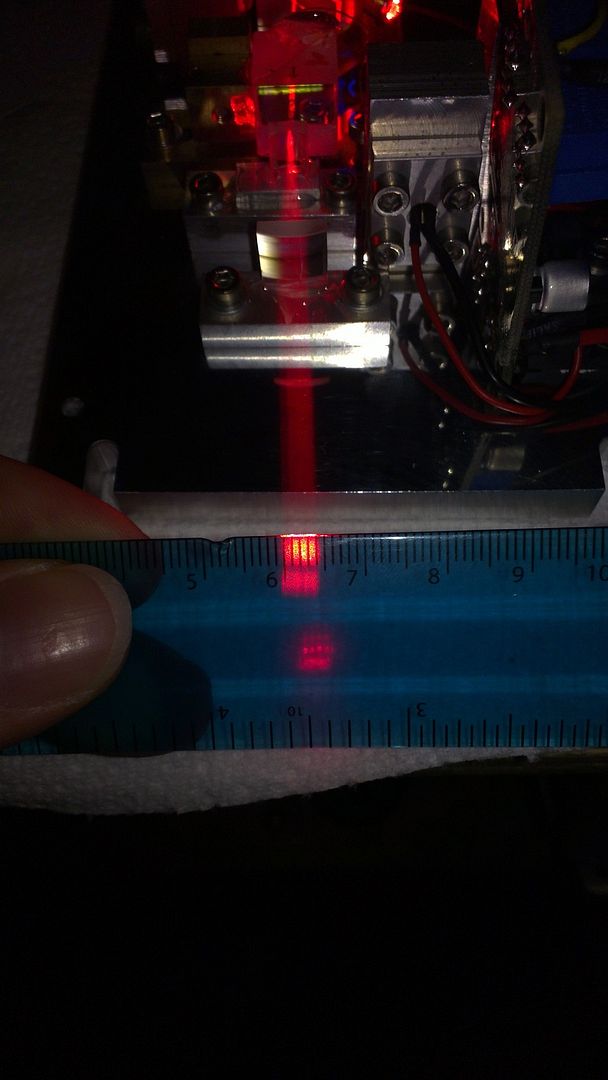

the beam is 4mm x 5mm at aperture @ around 1.2mR

it runs on 5v @ 5amp

also for sale so if anyone is interested drop me a PM

**tonyaztec** · 10-21-2012, 12:57

I like it, You know Mr Borg want's one like this, have you sorted one with him??

**andy_con** · 10-21-2012, 13:04

pfff yeah ish, this is to big for the space he has

**andy_con** · 10-21-2012, 13:12

module now sold

**borgqueenx** · 10-21-2012, 13:16

Very nicely made. Also nice that it uses 5v. Hope my psu still has some amps over to feed my red module later

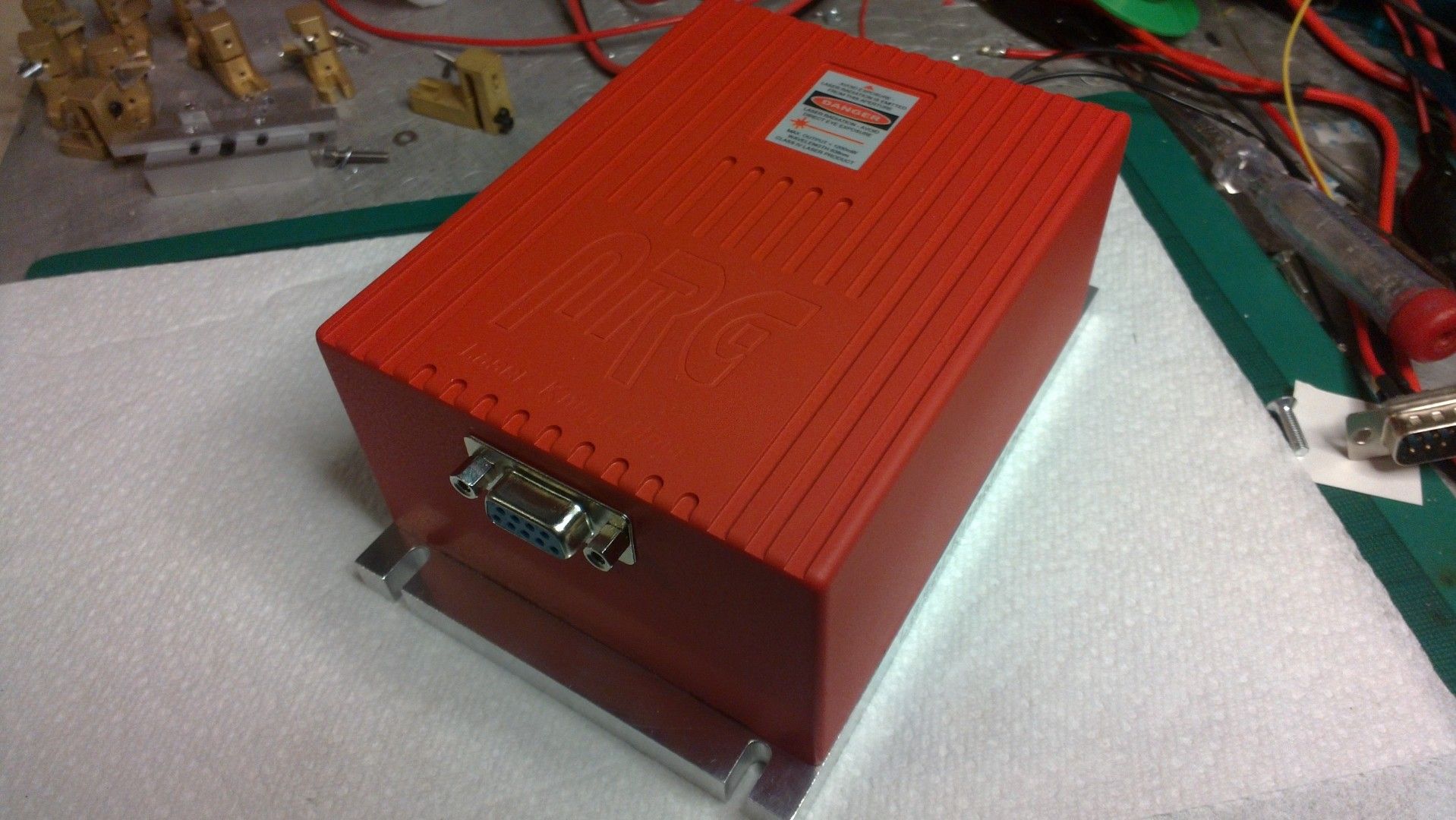

I am wondering about the backside. Is it a port for a external driver?

**andy_con** · 10-21-2012, 13:21

no driver is all inside the housing

**borgqueenx** · 10-21-2012, 13:22

Whats the port then for? How to connect it to power supply and modulation?

**badger1666** · 10-21-2012, 13:34

Whats the farfield beam spot like andy ?

**andy_con** · 10-21-2012, 13:49

Originally Posted by borgqueenx

Whats the port then for? How to connect it to power supply and modulation?

power and modulation

Whats the farfield beam spot like andy ?

a little messy, but ive never been able to get amazing crystal clear dots like single mode diodes

**borgqueenx** · 10-22-2012, 00:11

I dont understand. Do you have pictures of the cable?
