Laser Projector 4.0... 1W or Bust!

[300EVIL]

+



+



+



+



+



=

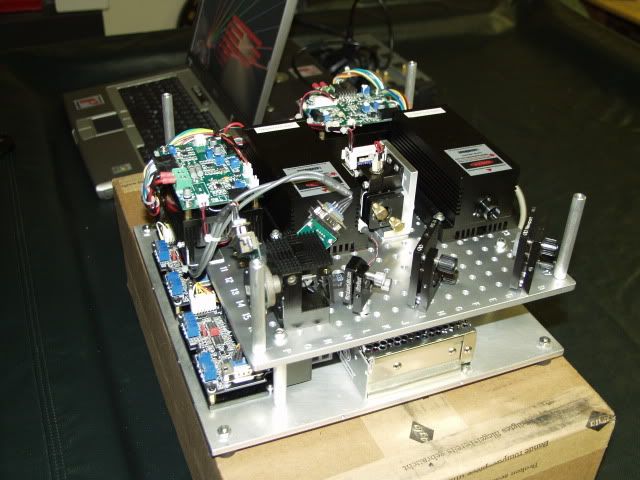

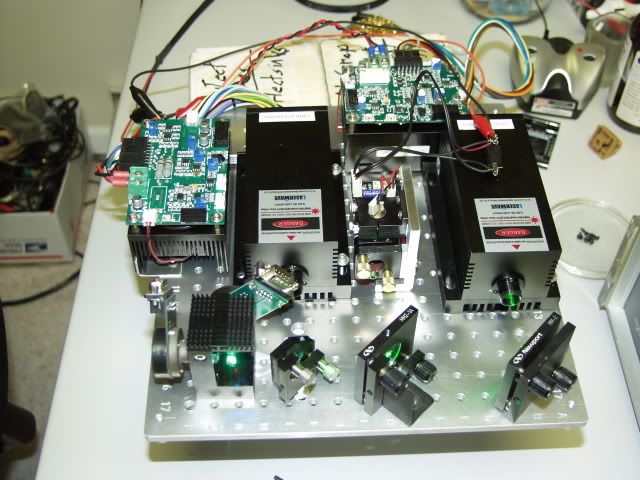

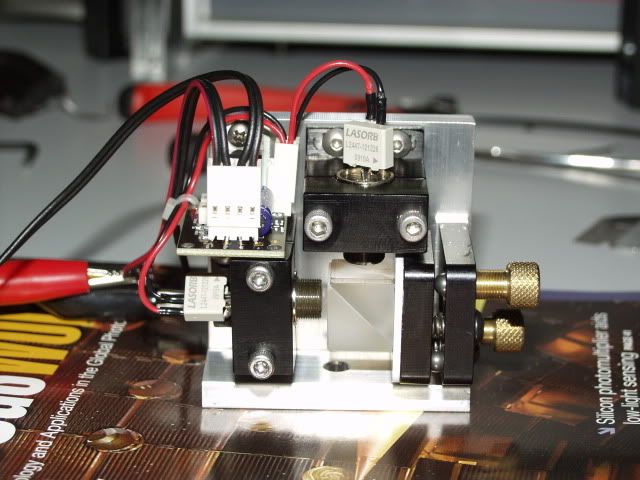

That's as far as I got tonight, still needs a little more alignment tweaking and wiring. I should have it up and running tomorrow evening.

Max output specs are:

• 530mW @ 660nm
• 370mW @ 532nm
• 270mW @ 473nm

I'd be perfectly happy with 750mw - 1W output after optics of white... We'll see!

[Things]

Very nice Adam!

Now lets see some beamzzzzzzzzzzzzzzzzzzzzzzz

[buffo]

You got it to fit!

When I looked at that layout, I knew it was going to be close... Good job on making everything fit on such a small baseplate. Can't wait to see the RGB beamshots from that baby!

Adam

[Laser Ben]

That looks wonderful! Amazingly tiny!

[ElektroFreak]

Very nice! Small, clean layout.. it'll look great when it's all finished.

[300EVIL]

Thanks guys!
I love portability.

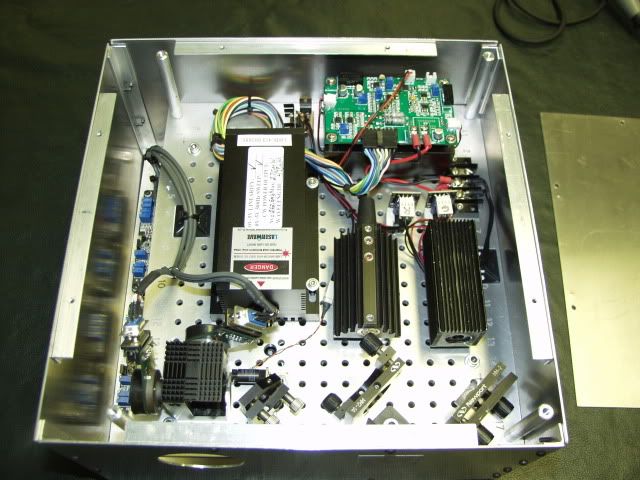

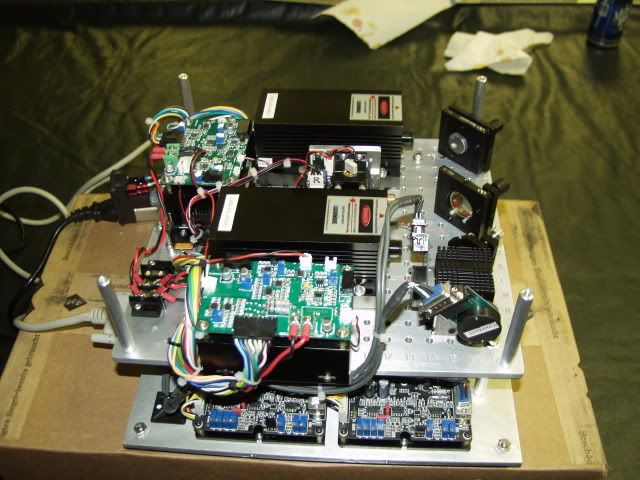

It's done! Well, except for a little color correction board tuning and putting on the side panels.







I'll try and post some beam pics tonight!

[QUAZAR]

Cool. Nice work there.

[300EVIL]

Beam Pics....

Sorry, For some reason my camera does not like red. The red in person is way brighter. Yellows and oranges are non existant. I'll post some video when I get a chance. That will be a better representation of my output.

[ElektroFreak]

Looks GREAT! I have the same problem with my camera. Makes all the colors look flat.. but I can visualize what yours must look like in person.

[Doc]

Look bootyfull! Yeah if the red pixels on your camera are centred on say 650nm and you show them 660 for instance; the response isn't great.

You can sometimes perk the colours by selecting a different white balance.
