Fs: Laserman532 quad kit elite!

[Laserman532]

List Price - $345.00!!!

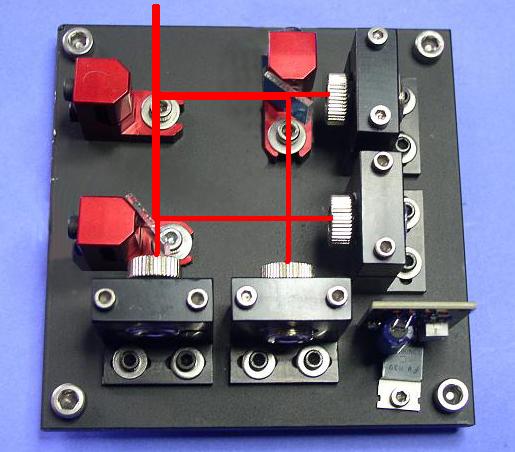

For Sale Laserman532 Quad Kit ELITE (Upgraded Flexibility)
Beam Height Above Surface = 1"

NOTE: This Kit is an upgrade from our standard Quad Kit. This upgrade replaces the TWO DUAL AIXIZ MOUNTING MODULES with FOUR SINGLE AIXIZ MOUNTING MODULES allowing the maximum amount of movement of each AIXIZ module. The added benefits are that the user is capable of individually shimming each single module to get the closest possible beam positions. SHIMS ARE NOT PROVIDED due to the too many variables associated with different diode beam parameters.

Features Explained-
1 - One ea. 4" x 4" x .25" Black Anodized Base / Mounting Plate
2 - Four ea. Single Aixiz Mounting Module's featuring SLIDE, ROTATE & INSULATE Technology
3 - Three ea. Ultra Small Adjustable Mirror Mounts by Chad
4 - Two ea. .5" x .5" x .060 NEW Enhanced Aluminum Front Surface Mirrors
5 - One ea. 10mm PBS Cube (specify 405 or 660 lasers to be used) (not shown)
6 - One FLEXDRIVE Driver Circuit by DrLava
7 - All necessary hardware to mount all the parts will be included
8 - NO Aixiz Modules, Laser Diodes, Lasorb's or Shims will be supplied with this kit

I have made a order of parts to build a few assemblies. I am not shooting for a galactic record for the smallest QUAD, that was not my goal. My goal was to supply all the necessary mechanics needed to hold aixiz modules securely, rotate each module independently, electrically isolate each aixiz module from each other, slide the module pairs with ease and to provide FULL TWEAKABILITY...I think I accomplished these goals with this kit.

(international shipping add $10.00)

Kits will be processed in order received.

Thanks for looking!

[mccarrot]

Very nice, only I think the adjustable mirror mount need to be moved forward because the mirror need to go just underneath the higher H beam.

[Laserman532]

Very nice, only I think the adjustable mirror mount need to be moved forward because the mirror need to go just underneath the higher H beam.

officially confused

[300EVIL]

Not a very good drawing but I NEED this!

[Laserman532]

Not a very good drawing but I NEED this!

I wish for just once i could just make one standard product LOL

what do you need LOL, you dont like squares or something??? you need a rectangle? JEEZ!!!!!!!!!!!!!!!

[300EVIL]

But how can I take over the world without giving you headaches Pat!

Darn! I just realized that still won't really work fro me... Still too tall. Back to the drawing board.....

[Laserman532]

LOL...I just did a quick drawing of what you want. Your layout would be 3 x 5 " that is 15 sq inches, my current layout is one square inch bigger.

My wife thinks the one inch bigger is better

[mccarrot]

This is what I mean with mount closer to the beam do the mirror goes underneath the other beam

[Doc]

officially confused

This would allow more scope for flexibility, maybe just tap a couple of extra holes to give the choice?

[mliptack]

Pat your combiners are true works of art!!! I have sent you a PM...
