Show off your Laser projector !

[frito]

Hi guys i got to tell you that i was inspired by some really good DYI laser projectors in this forum. I seen some that are way better than the ones u buy, thats why i decide to try to build one. Well this is my first build i am a noob so wish me luck and please grade me, give me ideas and suggestions of making it better thank you...
Here what i got so far Picture are below i know that im going to have a hard time tunning my galvos remember im a noob.
40kpps pro
Laser power： Green（532nm）120mw Red（650nm）300mw Blue(473) 80mw

[Speculative Lasers - Dan]

inside a plastic case is not a good idea

[carlos3621]

yeah,, that plastic case might start looking like swiss cheese

[Kiwi Tinker]

Heya Frito

I'm lovin the case, very 007'ish.

I had all kinds of 'outlandish' idea, including a flyscorcer thing made out of 5mm ally checker plate or just using my mailbox to mount it in, then after every gig i'd just put the mail box back and it would get used for it's intended perpose between gigs.

But i just ended up with a rectangle that was 3 by 2 by 1 deep. Still i like it even if it's shape demonstrates a total lack of artistic imagination.

The components you have there i think are the bones of a very good laser.

My advice is to just keep playing, i learn when i play.

cheers

robert

[bridge]

our exhibition projector, we don't had smoking, sorry for no show pictures.

[ElektroFreak]

^That's pretty sweet! Love the plexi case..

[flecom]

inside a plastic case is not a good idea

thats a pelican case, they are very strong...

personally i would have put all the connectors on the aluminum panel and not made any holes in the case to retain the waterproof/airtight feature of the pelican case

[Misebeam]

Well here are all of the tid-bits of my laser build, some pictures are blury, and on ftp but fun to see the progresion of my build.

http://mycoolspot.com/lpics/
http://mycoolspot.com/lpics2/
http://mycoolspot.com/lpics3/

Enjoy

[ElektroFreak]

^That's a pretty insane setup!

[300EVIL]

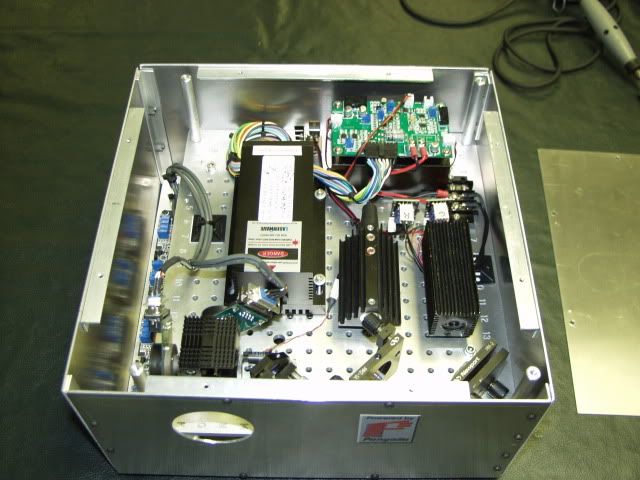

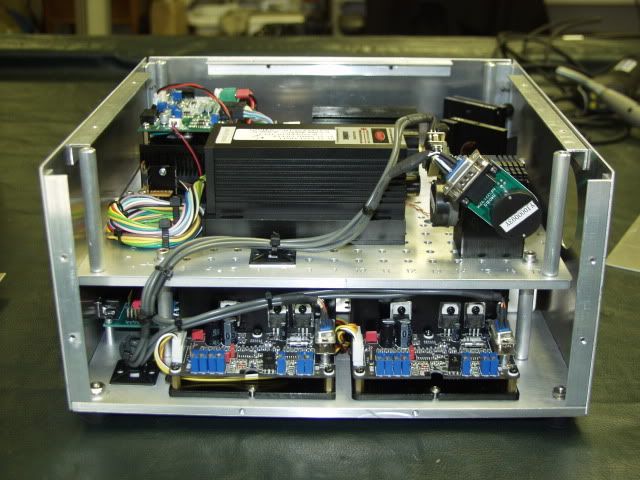

Here's my little projector. I built this enclosure around it one day before heading to SELEM. Unfortunately it was a rush job and it's not finished. Note the lack of exhaust fans. I was able to transport my projector on the plane in one piece though, that was nice. The whole box is 12X12X6 and can fit in a carry on bag.

















Here are the specs:

75mW of 532
200mW of 660
270mW of 473
LW-50K Scanners tuned to 30K

Soon I'll upgrade my red and green to some decent LaserWave modules. Probobly gonna need more space though.
